The Level 4 REC builds on Aventon’s legacy as a trusted, accessible commuter option, pairing a 750W hub motor with up to 75 miles of range for dependable, all-weather transportation. It’s built for riders who value simplicity, confidence, and everyday utility, offering strong acceleration for city streets, comfortable suspension for longer rides, and intuitive connectivity for security and peace of mind. With its combination of power, practicality, and affordability, the Level REC is the perfect balance of comfort and capability for riders who just want a bike that works every time they need it.
General Info
Weight
68.5lbs
Total Weight Limit
300 lbs
Rider Height
Regular – 5’3″-5’10”. || Large – 5’10”-6’4″
Ebike Class
Class 2 (Convertible to Class 3)
Water Resistance
Bike – IPX5 // Components – IPX6
Range
Up to 75 Miles
Safety Certifications
UL Safety Certified
UL 2849
Frameset
Frame
6061 Aluminum
Fork
80 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, Nutted Axle
Rear Spacing
148mm
Fork Spacing
100mm
Wheelset
Front Wheel
27.5″ Double Wall Aluminum, 36 Hole, 15x100mm Thru Axle
Rear Wheel
27.5″ Double Wall Aluminum, 750W Nutted Axle Hub Motor
Tires
Kenda Kwick Seven-5 Sport 27.5″x2.2″
Ebike System
Motor
Hub Motor, 80Nm (96Nm in Boost Mode), 1188W Peak (1440W in Boost Mode)
Motor Torque
80Nm
Motor Power
750W (1188W Peak)

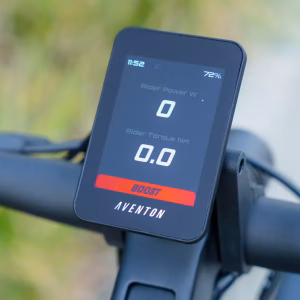

Display
Aventon A280
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight
8.7lbs
Controller
36V, 33A
Throttle
Included
Sensors
Sensor Switch Compatible (Cadence & Torque)
Charger
42V 4A charger
Charging time from 0% to 100%
5 hours
Lights
Front and rear lights integrated
Smart Features
Regenerative Braking, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification
Brakes
Front Brake
Tektro HD-E3520 2-Piston Hydraulic Disc w/ E-Cutoff
Rear Brake
Tektro HD-E3520 2-Piston Hydraulic Disc w/ E-Cutoff
Front Brake Rotor
180mm 6 bolt
Rear Brake Rotor
180mm 6 bolt
Brakes
Regenerative Braking
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Shifter
Shimano 8-Speed Trigger
Chain
7/8 speed 120L
Cassette
Shimano CS-HG200-8 8 speed Cassette, 12-32T
Chainring
48T
Chainring BCD
N/A
Crankset
165mm
Bottom Bracket
Square Tapered, Sealed, Double Sided Torque Sensor, 83mm x 158.5mm
Pedals
9/16″ Composite Platform
Cockpit
Saddle
Aventon Saddle
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp
34.9mm
Handlebars
Aluminum 31.8mm, 680mm
Stem
Aluminum, 31.8mm Clamp, 60mm Length, 90 Degree Adjustable w/ Internal Routing
Grips
Aventon Lock on grips
This bike is available in multiple sizes to suit most adults.
| Frame Size | Regular | Large |
|---|---|---|
| A – Seat Tube Length | 440mm | 500mm |
| B – Top Tube Length Horizontal | 605mm | 635mm |
| C – Bottom Bracket Drop | 50mm | 50mm |
| D – Head Tube Length | 140mm | 140mm |
| E – Head Tube Angle | 70° | 70° |
| F – Seat Tube Angle | 74° | 74° |
| G – Rear Chainstay Length | 480mm | 480mm |
| H – Front Wheel Center | 675mm | 705mm |
| I – Wheelbase | 1150mm | 1180.7mm |
| J – Reach | 420mm | 450mm |
| K – Stack Height | 620mm | 618mm |
| L – Fork Length | 480mm | 480mm |
| M – Fork Offset | 43mm | 43mm |
| N – Trail | 81mm | 81mm |
| Wheel Size in Inches | 27.5″ | 27.5″ |
| Stand Over Height | 687mm | 695mm |
| Rider Height (Range) | 160cm – 175cm (5’3″ – 5’10”) | 175cm – 195cm (5’10” – 6’4″ |
